High-Speed Steel Machine Tap Drill Bit 43688 - Precision Threading Tool for Metalworking, DIY & Industrial Applications

Product Description

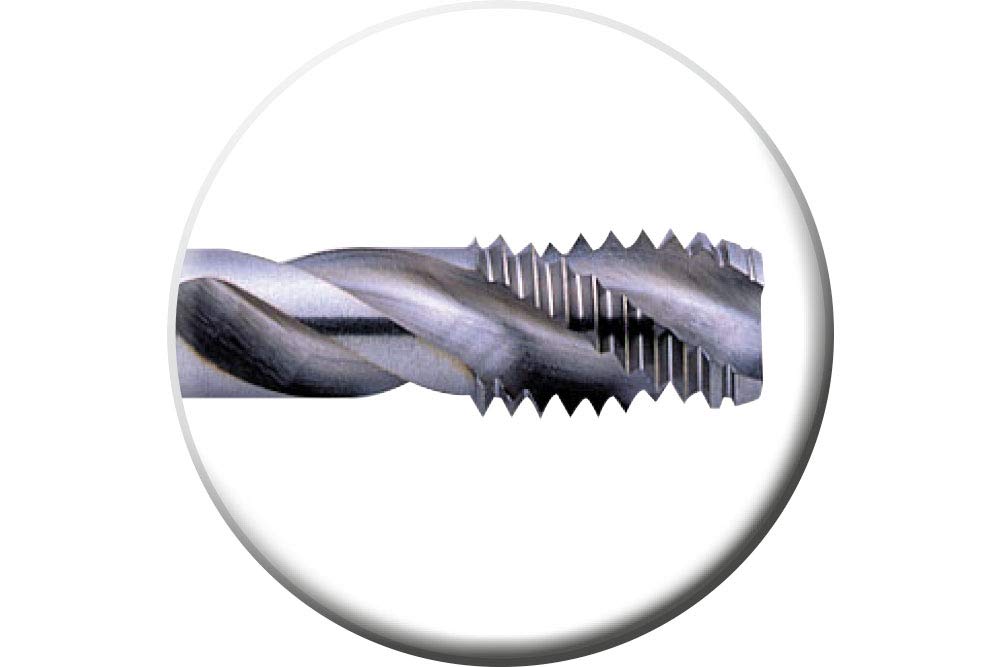

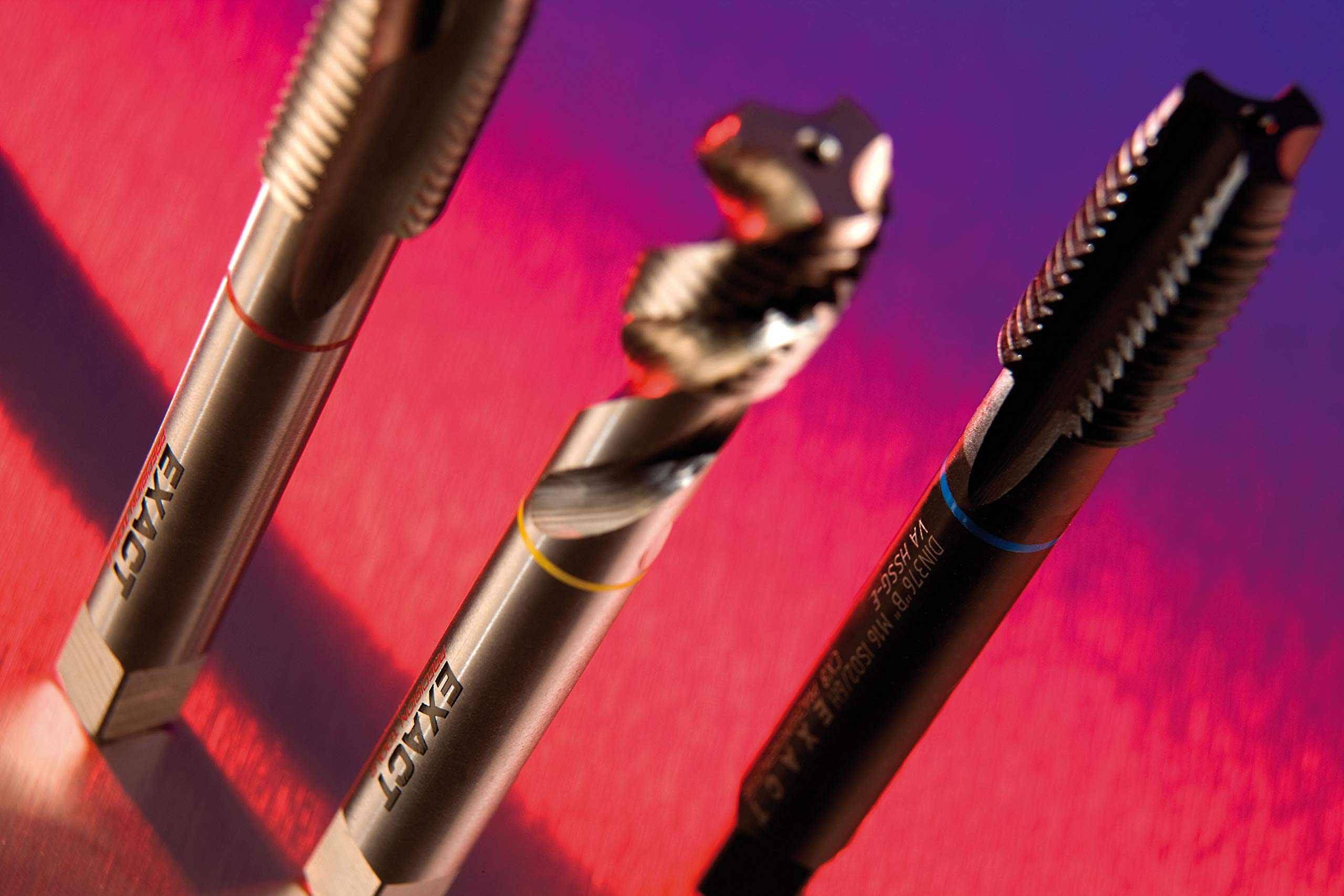

Exact machine tap M3, HSS-E, DIN371, TiAlN coating, form B. Use for alloyed steels up to 1200 N/mm²: for cutting internal threads. Cut shape: Form B 5 speed cut with peeling cut for through holes. Thread: for metric ISO thread DIN 13, tolerance 6H. Thread pitch: 0.5 mm. Thread core hole: 2.5 mm. Cutting length: 11 mm. Total length: 56 mm. Shaft square diameter: 2.7 mm. Tolerance: ISO 6H. Exact machine taps are available in all common types and dimensions made of HSS - E steels with a special colour ring system for a wide range of applications. The colour ring system facilitates the correct selection of the respective machine tap for the appropriate application.
