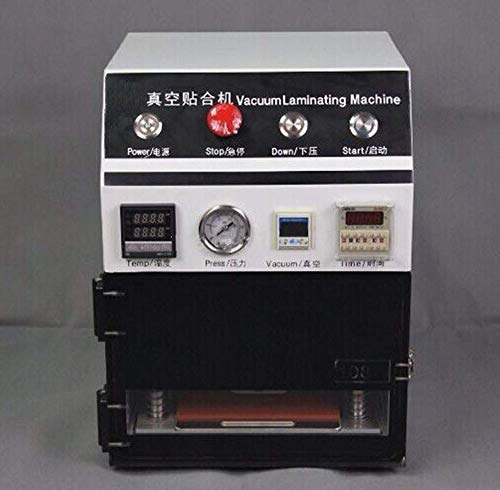

Upgraded LCD OCA Lamination Machine - Professional Vacuum Laminator for Screen Repair | Perfect for Phone, Tablet & TV Display Refurbishment

Introduction This Latest Vacuum lamination Machine , can be suitable for touch screen Cover plate (Cover Lens) and functional Glass Sensor (Glass) of OCA laminating process; Apply to the Touch screen (Touch Panel) and liquid crystal module (LCD Panel) of the OCA laminating process, at the same time can also be applied to other areas of membrane, glass to glass (glass) of hard in hard OCA laminating process

Features No mold, no bubble; Equipment imported from Japan SMC pneumatic components; A key to start, easy to operate; Japan thermostat, the temperature can be accurate to ¡À 1 ¡ãC; Japanese precision pressure regulator, pressure ¡À 0.001Mpa; Flat lamination way, the overall lamination, smooth uniform pressure, no stress concentration, no color pattern after lamination, no indentation, LCD chaos color, smaller convenient transportation.

Technical parameters Device Power AC220V 1500W power supply optional AC110V, AC220V, AC380V; Working pressure 0.4-0 .6 Mpa Work environment 20-23 ¡ãC, clean, dust-free; Fitting way flat lamination; Productivity 40s/1pcs; Heating mode heating thermostat Adapt Size 7 "(according to customer requirements); Laminate 3 LCDs a time . Equipment size 320 * 292 * 370mm; Weight about 30kg

Package List 1 x OCA Laminating Machine 220V/110V
