SKU:47577845

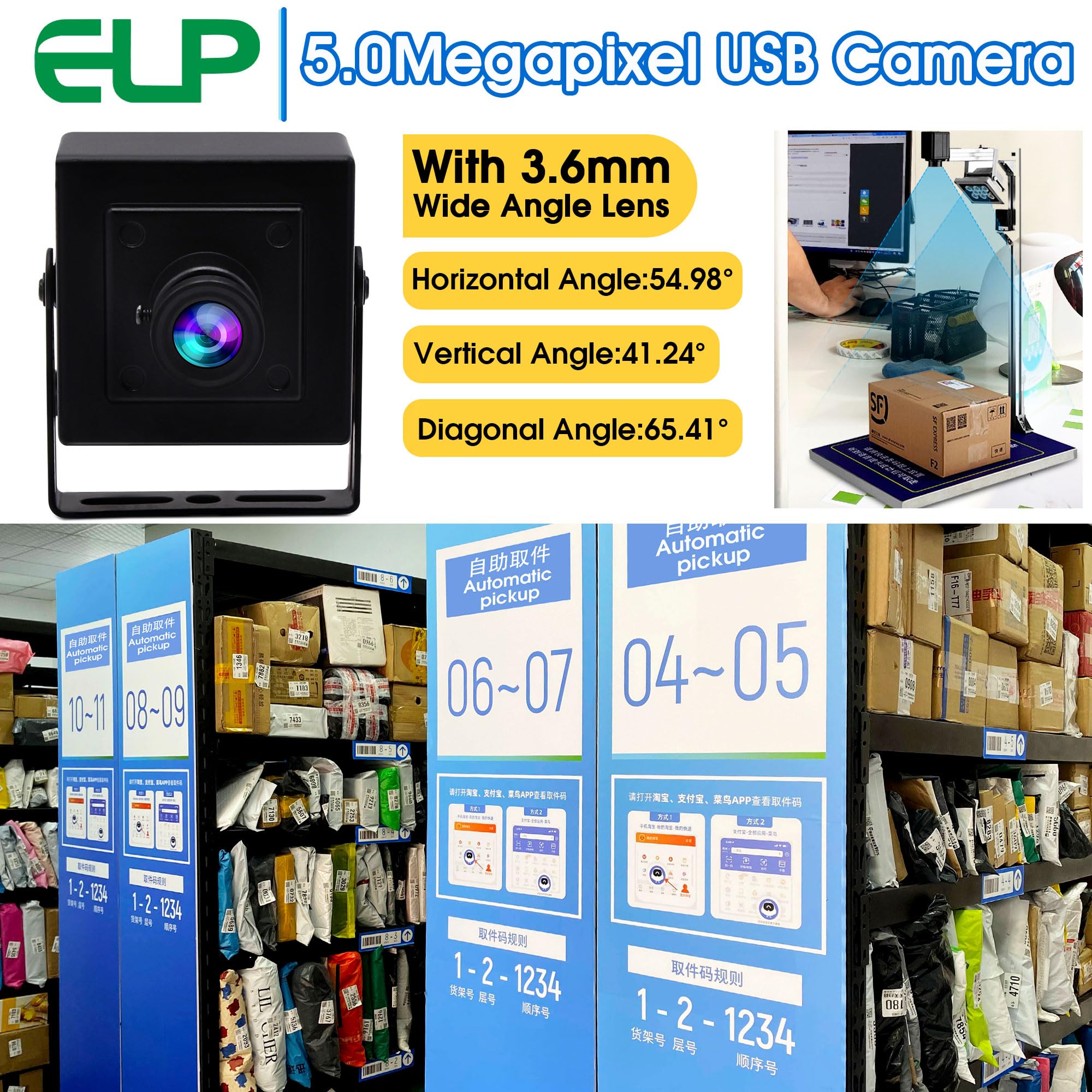

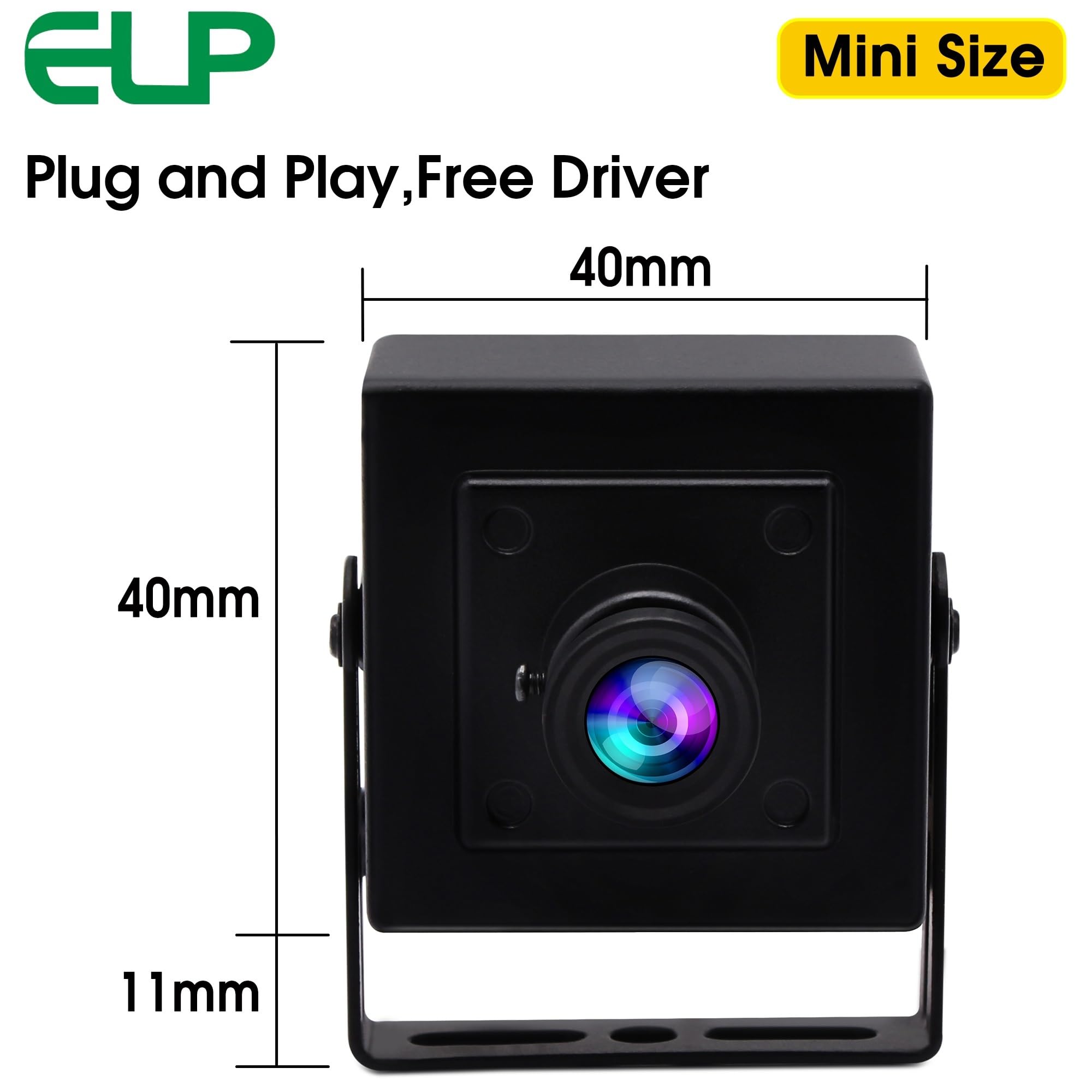

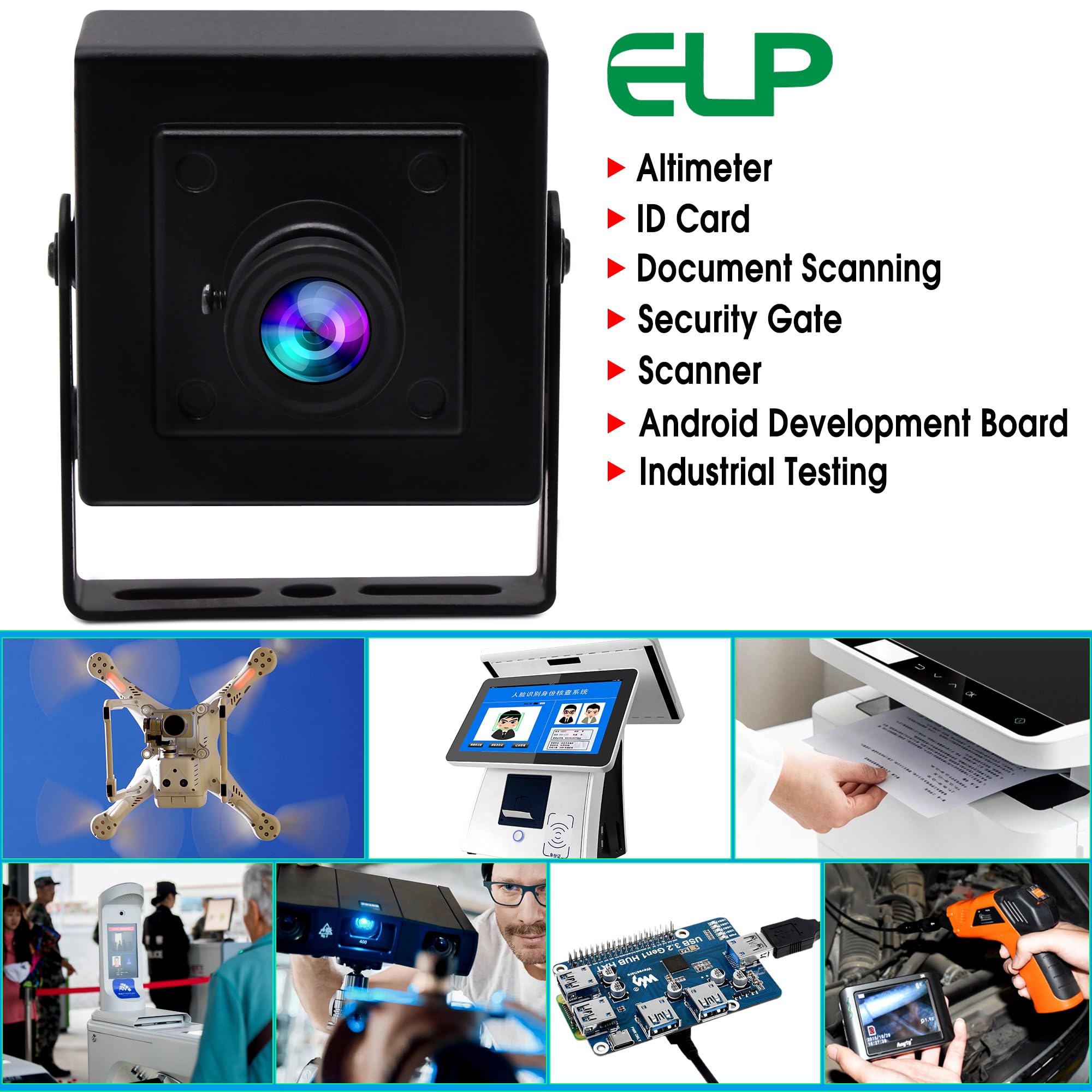

ELP 5megapixel wide angle usb camera with 3.6mm wide angle lens for computer,pc,laptop. ELP-USB500W02M-BL36 (3.6mm wide angle lens, HFOV about 65.41degree) Based on 1/4" 5MP OV5640 image sensor, Fixed focus, 3.6mm lens, UVC compliant USB 2.0 cameras. This is a mini webcam module, Max resolution 5.0 Mega pixel 2592 x 1944 output, no extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera. Manual control the focusing process to capture the still object,shots the imaging and video you want.Ultra HD resolution meets your request for higher quality video still pictures resolution. Mini size, light weight usb camera, camera with UVC for computer, laptop, pc, raspberry pi, android development board, etc. SPECIFICATIONS Camera - Sensor: 1/4” OV5640 - Resolution: 5MP 2592H x 1944V - Frame Rate: 2592x1944 MJPEG 15fps YUY2 3fps2048x1536 MJPEG 15ps YUY2 3fps1600x1200 MJPEG 15fps YUY2 3fps1920x1080pixels MJPEG 15fps YUY2 3fps1280x1024MJPEG 15fps YUY2 7.5fps1280x720 MJPEG 30fps YUY2 7.5fps1024x768 MJPEG 30fps YUY2 15fps800x600 MJPEG 30fps YUY2 30fps640x480 MJPEG 30fps YUY2 30fps ELP 5MP Embedded USB Webcam Camera With 3.6mm Lens for Industrial,Medical Equipment,Bar Code Scan,etc. ELP USB Camera can work along with the webcam software installed by default in the PC. Lens - Field of View (FOV)： H= 65.41°(V) - Lens Mount: M12 - Focusing Range: 2inch (5cm) to infinity - IR Sensitivity: Integral IR filter, visible light only Functionality and Compatibility - Adjustable Parameters: Saturation, Contrast, Acutance, White balance, Exposure. - System Compatibility: Windows, Linux, and Mac with UVC Power - Power Supply: DC 5V - Working Current: MAX 200mA Physical - Operating Temp.: -4°F~158°F (-20°C~+70°C) - Dimension: 40*40*22mm - Cable Length: 9.9ft (3M) ELP 5MP usb camera module high compatibility usb webcam board 5megapixel 1944p mini web cam wide angle fisheye webcamera work with most os for multiple applications 5megapixel Ultra Clear Max Resolution: 2592(H) X 1944(V) 5Megapixel 5megapixel high pixel technology for sharp image and accurate color reproduction Wide Angle 3.6mm lens: Wider angle of view: Mini USB camera with wide angle 3.6mm lens, FOV is about 65.41degree(V). Mini Size: 40mm*40mmLow power consumption - ideal for portable equipment. Plug and play,free driver,UVC compliant, lower power consumption, ideal for portable equipment. Plug and Play/Free Driver UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. Wide Compatibility: WINDOWS 2000 / CHROME OS / LINUX / MAC OS / ANDROID / UBUNTUMulti-Platform SupportYOUTUBE / ZOOM / AMCAP / FACETIME / SKYPE Multiple Application: Mini USB camera can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, etc. Small outline and thin profile for embedded machine vision like home surveillance system, wildlife photography, dashcam, baby camera, etc. Application: Applications: Bar Code QR Code ScanDocument, Passport, Receipt Identification Scanning3D Printer,3D ScannerHome Surveillance SystemRobotic Machine VisionBaby CameraDashcam ELP-USB500W02-BL36 ELP-USB4KCAM01H-CFV(2.8-12) ELP-USB4KCAM01H-CFV(5-50) ELP-USB4KCAM30H-CFV(5-50Y) ELP-USB16MP01-BH120 ELP-USB4KHDR01-UFV(5-50mm) Add to Cart Buying Options Add to Cart Buying Options Buying Options Add to Cart Customer Reviews 3.6 out of 5 stars 4 4.3 out of 5 stars 61 4.3 out of 5 stars 61 3.2 out of 5 stars 16 4.7 out of 5 stars 9 3.7 out of 5 stars 39 Price $89.47$89.47 — no data $201.06$201.06 — no data — no data $163.29$163.29 Max Resolution 5.0Megapixel 2592HX1944V 4K 2160P 4K 2160P 4K 2160P 16MP 3496P 4K 2160P Image Sensor 1/4" CMOS OV5640 SONY IMX415 SONY IMX415 SONY IMX415 1/2.8" Sony IMX298 1/2.5" SONY IMX317 Lens 3.6mm lens 2.8-12mm variable focus 5-50mm variable focus 5-50mm variable focus 120degree low distortion lens 5-50mm variable focus Mini Illumination 0.1LUX 0.2LUX 0.2LUX 0.2LUX 0.5LUX 0.2LUX HFOV 65.41°(H) Adjustable angle of viewing range Adjustable angle of viewing range Adjustable angle of viewing range 118°(H) Adjustable angle of viewing range Interface USB2.0 USB2.0-Type c/HDMI USB2.0-Type c/HDMI USB3.0-Type c/HDMI USB2.0 USB2.0 Max Frame 1080P@30fps 4K@30fps 4K@30fps 4K@60fps 1744P@30fps 4K@30fps Built-in Microphone NO NO NO NO NO ✓ Compression Format MJPEG/YUY2 H.265/H.264/MJPEG/YUY2 H.265/H.264/MJPEG/YUY2 H.264/MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 Compatible Device Computer, laptop, pc, android device, tablets, etc Computer, laptop, pc, android device, tablets, monitor, TV, Projector,etc. Computer, laptop, pc, android device, tablets, monitor, TV, Projector,etc. Computer, laptop, pc, android device, tablets, monitor, TV, Projector,etc. Computer, laptop, pc, android device, tablets, etc Computer, laptop, pc, android device, tablets, etc
3.6mm fixed lens with 3Meters long cord usb cable webcam
OV sensor,5megapixel HD high resolution can used in high leval video system for personal or industrial video camera
With aluminum case, plug and play directly installation anywhere for android,linux,windows pc system
Good to use for high leval products image intergation or housekeeping security
compatible with raspberry pi, opencv and many other camera software and hardware to display or record
This is a great camera. Seller ships from China and it arrived in the same time as a domestic UPS package shipped the same day! The camera is super simple to setup, I downloaded Debut (free software) for the UTC interface on my Windows 7 computer. Windows 7 automatically found the correct driver and installed it within seconds. Debut found the camera immediately and I was taking video in less than 1 minute. This camera is excellent in low light conditions and I actually adjusted the brightness in Debut because the picture was brighter than I needed. It seems plenty durable with the aluminum hosing. I am using it in my woodturning shop to video my hollowing and other work. Great picture. Not quite as clear as the GoPro Hero 3 I was using but plenty enough quality for my needs. It is also small and comes with over 9 ft. of USB cable. Uses little memory compared the GoPro. One minute video (30 fps) 10.6 mb. This camera is a great value and I don't think you can beat the overall package of shipping, value, and quality, anywhere. Great deal! If you need a video camera for CCTV this is the one! Not sure about durability yet but if it doesn't turn out to be as durable as I think it is, I will update this review.
