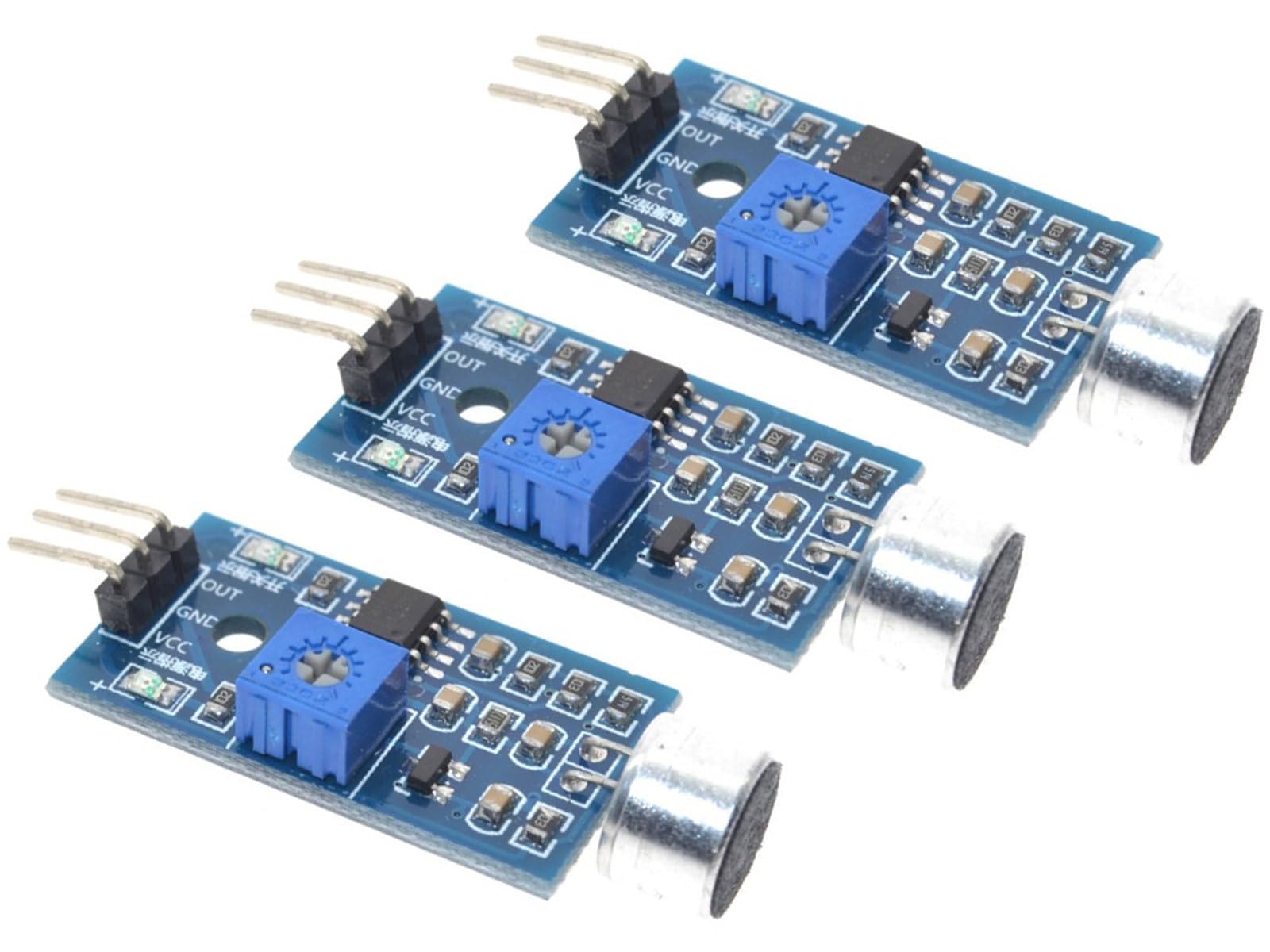

CANADUINO® Adjustable Noise Sound Sensor Module with Trigger Output for Arduino, Raspberry Pi - Perfect for Home Automation, Security Alarms & DIY Electronics Projects

Product Description

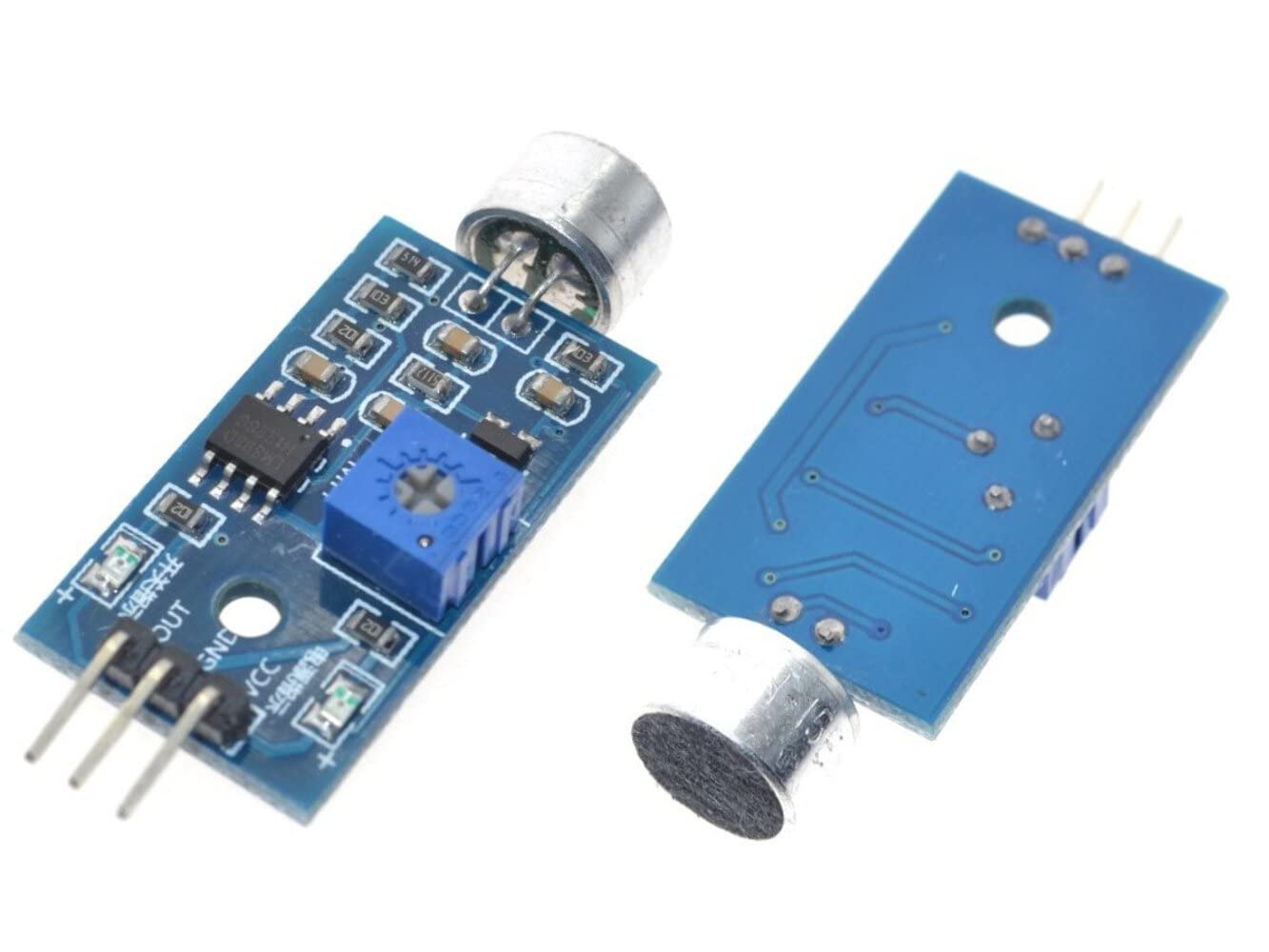

Noise Sound Audio Sensor analog and trigger output, adjustable sensitivity. Compatible with Arduino and other Micro Controllers. The noise sensor has a tiny microphone capsule on bard, and can trigger an output signal when an adjustable noise level has reached. The additional analog output can feed for example into a microphone amplifier or a sound processor. The power supply should be chosen accordingly to the connected micro controller; for example 5V for an Arduino Uno, or 3.3V for an Arduino Due or Zero. Please see the schematic; it shows a trigger circuit very similar to the one on the Noise/Audio Sensor board. The analog output is not shown on the drawing, but it is just the straight signal from the microphone. Operating Voltage (max.) 2- 36V Operating Voltage (recommended) 3.3 or 5.0V Trigger output with adjustable sensitivity. Max. output (sink) current 16mA. Dimension sensor 15x 37 x 14 mm, 3.6g
