SKU:35208202

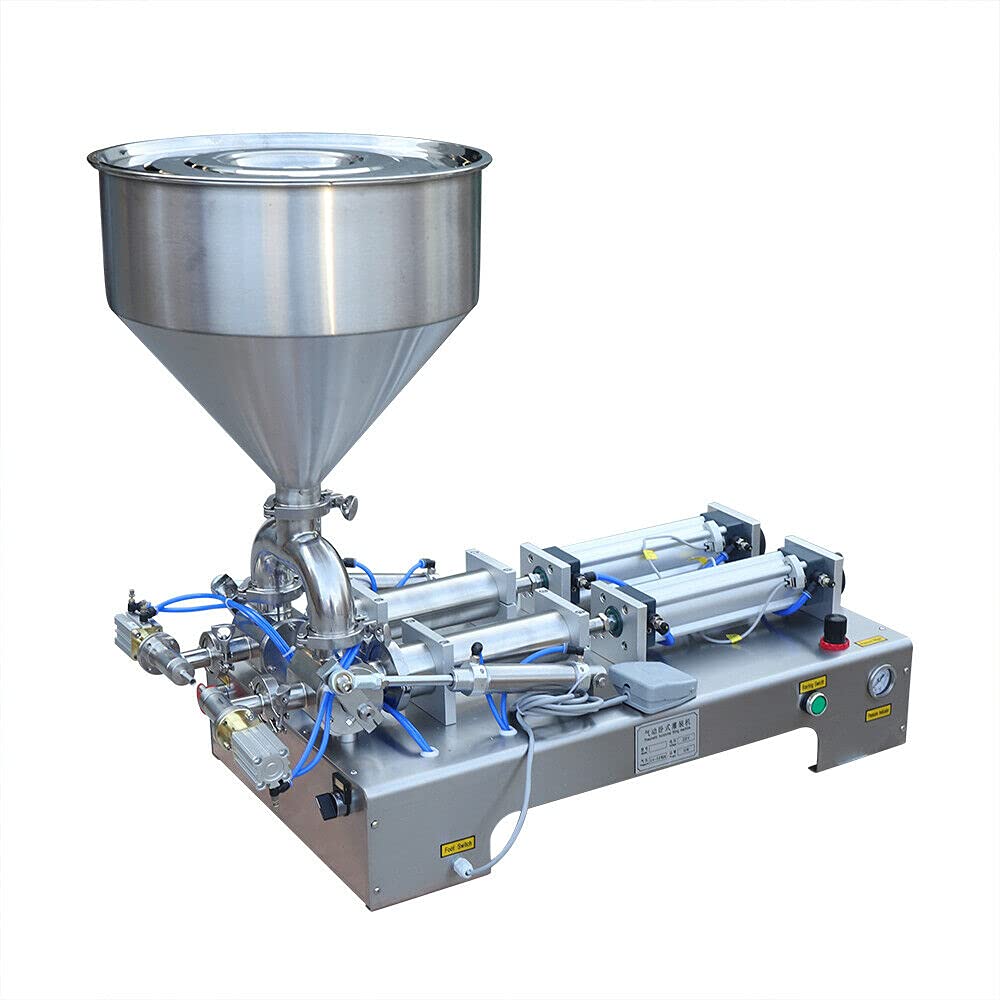

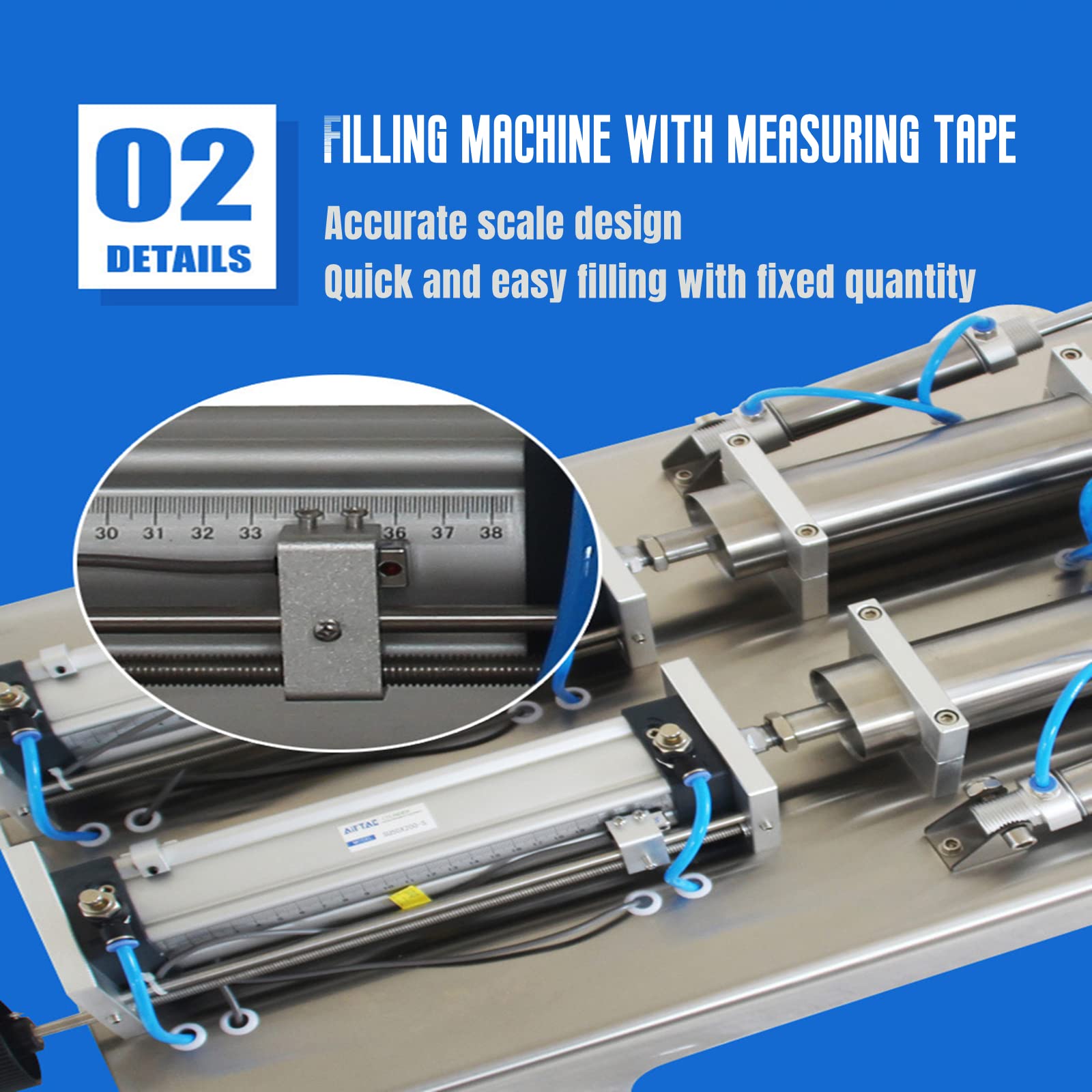

DOUBLE HEADS PNEUMATIC LIQUID PASTE FILLING MACHINE This is a semi-automatic 100ml-1000ml horizontal single-head liquid filling machine. The pneumatic filling machine is suitable for various high viscosity liquids and pastes, such as honey (uncured state), cream, ketchup mustard sauce, fine-grained chili sauce. PACKING LIST Machine + hopper + sealing ring + wrench + manual This machine is made of 304 stainless steel. Corrosion and wear resistance, making the machine more widely used The filling volume can be adjusted according to the proportion, making the filling volume adjustment more convenient and accurate PRODUCT PARAMETERS SPECIFICATION OF FILLING MACHINE Voltage: 110V Frequency: 60HZ Size: 110*45*30cm Weight: 55kg Working method: pneumatic Filling speed: about 1-30 bottles/min Single filling range: 50-500ml Air pump power: 800W Working pressure: 0.6MPA Filling accuracy: ≦±1% DETAILS OF PNEUMATIC LIQUID PASTE FILLING MACHINE ANTI-DRIPPING DESIGN Equipped with a 19.6"x19.6"x19.6" hopper with a large inlet volume at once. A rotary valve controls the transfer of paste material to the outlet, no dripping. CONVINIENT OPERATION PROCESS With cylinder homing knob, convenient operation, filling speed adjustment knob, combined with the principle of mechanics, the filling machine can keep durable and stable running. 2 WAYS TO CONTROL The bottle filler has two ways to control, foot switch filling and continuous automatic filling, two filling methods can be Initially recommended to use foot switch filling. WIDE APPLICATION This filling machine is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid. NOTICE 1. Regarding cleaning: The rotary valve is made of wear-resistant, acid-resistant, and high-temperature resistant tetrafluoroethylene material, so you can't knock and collide at will 2. The main power of the machine is air source, customers need to prepare their own air pressure equipment 3. Influencing factors of filling speed: the viscosity of the material, the stroke of the cylinder, the size of the filling, the proficiency of the operator 4. Description of the viscosity of the filling material: the thickest can only be filled with the viscosity of toothpaste, and the viscosity is smaller than it.
★WIDE APPLICATION -- This filling machine is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.

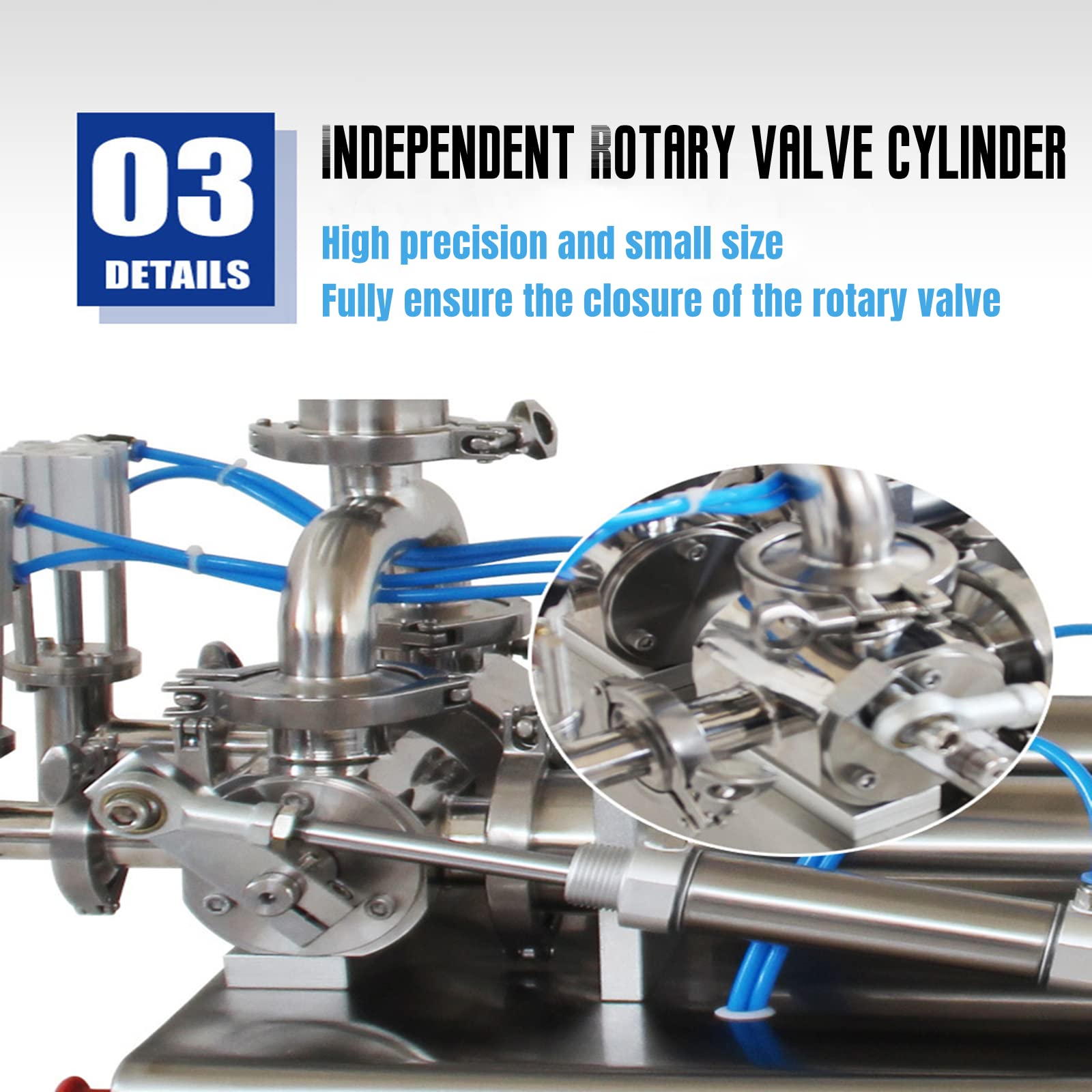

★ANTI-DRIPPING DESIGN -- This liquid paste filling machine has an efficient filling performance. It is equipped with a 19.6"x19.6"x19.6" hopper with a large inlet volume at once. A rotary valve controls the transfer of paste material to the outlet, no dripping.
★CONVINIENT OPERATION PROCESS -- With cylinder homing knob, convenient operation, filling speed adjustment knob, combined with the principle of mechanics, the filling machine can keep durable and stable running.
★2 WAYS TO CONTROL -- The bottle filler has two ways to control, foot switch filling and continuous automatic filling, two filling methods can be Initially recommended to use foot switch filling.

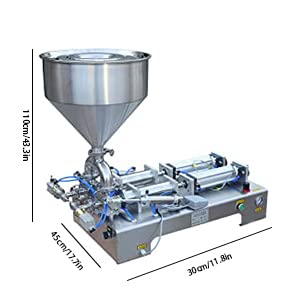

★BASIC SPECIFICATION -- The filling volume range is between 50ml - 500ml.Filling speed about 1-30 bottles/min.Filling accuracy ≦±1%. Size 43.3"x17.7"x11.8" .Hopper 19.6"x19.6"x19.6".
Before purchasing the machine, do your research. I have more than 15 years of experience working on industrial machines and can assure you that the quality of the machine is not good. In the third use, after spending time changing air fittings due to poor quality, it blows o rings onto the product containers. Leaks a small amount of product into the large pusher cylinder, causing numerous problems and affecting accuracy. Not worth the price for the quality is more a $500 machine.
