SKU:30130052

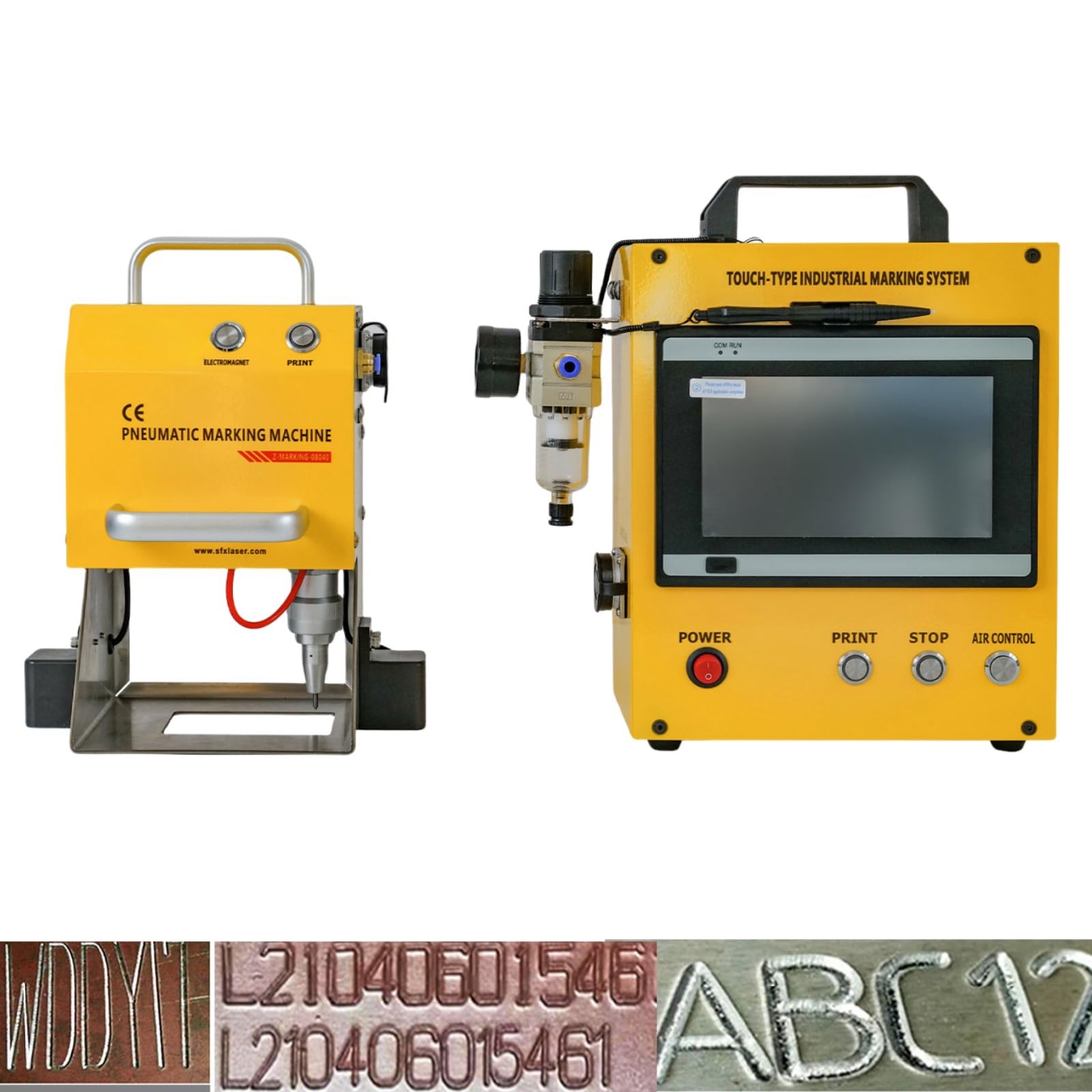

Portable Pneumatic Dot Peen Metal Marking Engraving Machine 80*40mm Advantages of Pneumatic Dot Peen Marking Machine: Pneumatic Dot Peen Marking Machine can be used for marking fixed Character,serial number,VIN,date,graphics and other marks.Long lifespan and working time: can work continuously> 24 hours.High hardness alloy marking needle can be used for marking ＜HRC60 material.Easy to operate. English operation interface comes with 7 inch touch screen controller.It does not need to be equipped with a computer, and it can be used by connecting to the air source and the power supply.The engraving content can be stored for future use.Marking effect is good. Pneumatic Marking Machine Technical Parameter Model Z-MARKING-08040/Z-MARKING-12050 Marking Depth 0.02-1mm Marking Speed 3-5 characters/s Marking Range 80mm*40mm/120mm*50mm Power Supply AC220V/110V,50Hz Air Pressure 0.4-0.5Mpa Air Consumption 3L/S Power Consumption 100W Operating Temperature 1-40ºC Relative Humidity <90% Net Weight 10kg/11kg Gross Weight 13kg/14kg Packing Size 615*358*252mm Product Details Hard Alloy Marking Needle Can be used for marking the material that the hardness is less than HRC60. Exquisite Appearance Automatic Marking. Small size,light weight,easy to carry. Long Lifespan. 7” Touch Screen Controller No need computer.It will work with air source and power supply. English operation interface. Strong Electromagnet Base No need to hold by hand.The head comes with an electromagnet base which can be firmly attached to the surface of the metal workpiece. Mass production.Each machine must be strictly inspected and professionally packaged before leaving the factory.We have the machine in stock in the US. Case Show Pneumatic Metal Marking Machine 80x40mm Pneumatic Metal Marking Machine120x50mm Pneumatic Metal Marking Machine 150*80mm Add to Cart Add to Cart Add to Cart Customer Reviews 3.3 out of 5 stars 6 3.3 out of 5 stars 6 3.3 out of 5 stars 6 Price $1,149.00$1,149.00 $1,209.00$1,209.00 $1,999.00$1,999.00 Marking Field 80mm*40mm 120mm*50mm 150*80mm Marking Depth 0.02-1mm 0.02-1mm 0.02-1mm Marking Speed 3-5Characters/s 3-5Characters/s 3-5Characters/s Power Consumption 100W 100W 100W Power Supply AC220V/110V,50/60HZ AC220V/110V,50/60HZ AC220V/110V,50/60HZ
INTRODUCTION-WTTTOOLS dot peen marking machine achieves automatic marking without using a computer. Marking Depth 0.02-1mm(depending on material). Marking Speed 3-5 characters/s. Marking Area3.1x1.5in. Power Supply AC 110V/220V, 50Hz. Air Pressure 0.4-0.5Mpa. Power Consumption 100W. Operating Temperature 1-40°C. Relative Humidity＜90%. Net Weight10kg/22lbs. Gross Weight 13kg/28.67lbs. Package Dimension 24.2*14.1*9.9in.

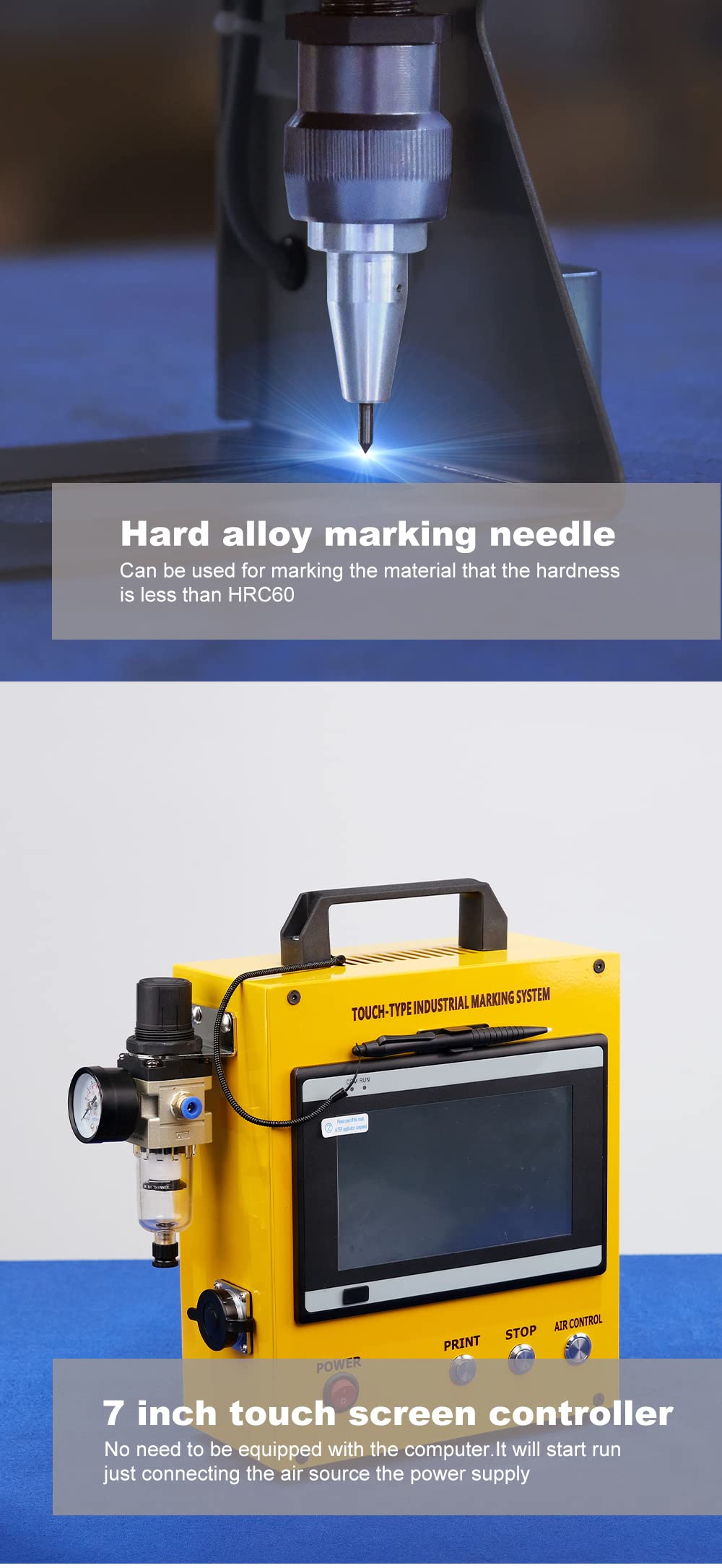

HIGH EFFICIENCY-This pneumatic engraver has a 7-inch built-in touch screen controller and you can set parameters conveniently. Besides, with a high-quality hard alloy marking needle, it can be used for marking the material that the hardness is less than HRC60 and can also provide you deep and permanent marks.
EASY TO USE-This dot peen engraver has a compact design and a small volume which helps you carry easily. This pneumatic comes with a strong electromagnetic base that can be firmly attached to the surface of the magnetic workpiece so that you don't need to hold it by hand when you working.
WIDE APPLICATIONS The 100W dot peen marking machine can be widely used for it is graphics, text, product serial number, trademark, etc. It is often used in automobile, electronics, machinery industry, etc.
CARING SERVICE We provide 1 year guarantee for the whole machine and lifetime online support. If any questions, please pm us via Amazon, and we will try our best to make you satisfied.
I’ve engraved about a thousand 8 digit numbers on I-beam stock and this thing holds up really well and is still going strong. Makes a nice deep etch that easily shows after galvanizing. The manufacturer is really supportive, too. I accidentally ordered the wrong replacement pins and they caught it before it shipped and sent me the right parts. I couldn’t be happier with this purchase and the manufacturer.The only thing I added was an auto oiler on the air input side. Works great.
