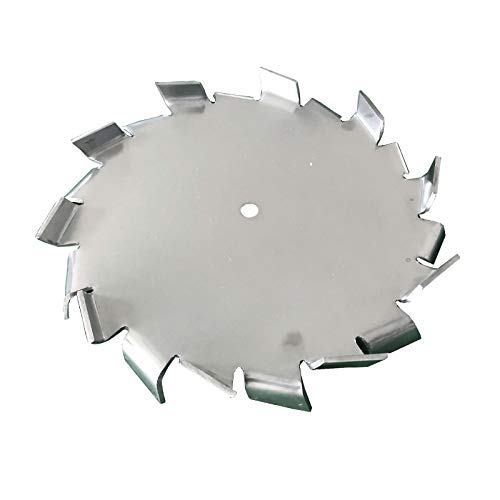

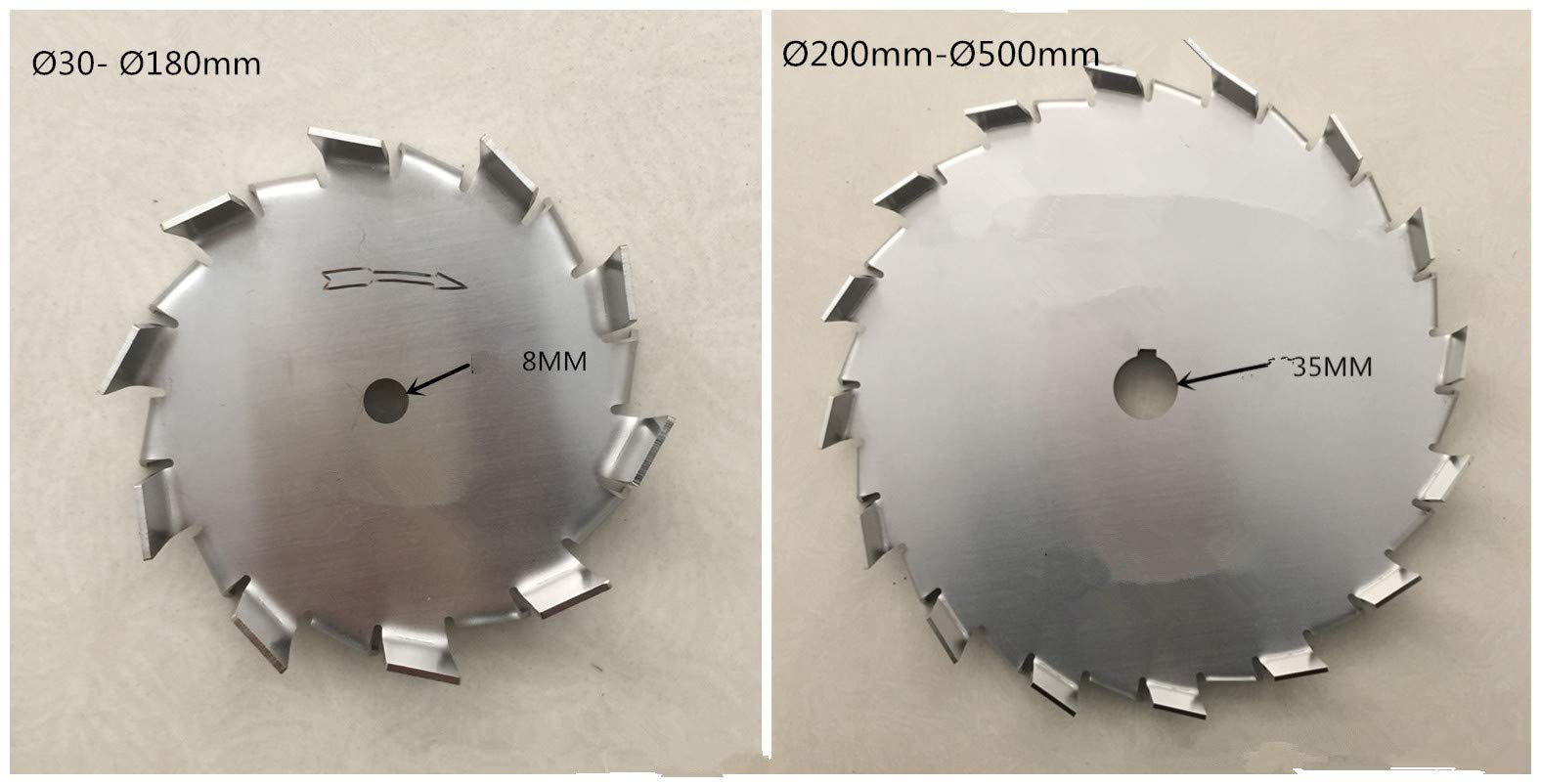

Product Description Dispersion trays are mainly used for grinding and grinding of coatings, dyes, pigments, paints, adhesives, pharmaceuticals, daily chemicals, etc. It is a general accessory of dispersing machine, grinding machine, crusher, mixer, emulsifying machine and other mechanical equipment. Working principle The dispersing disc is the accessories of the high-speed dispersing machine, connected to the main shaft of the high-speed dispersing machine. When the spindle of the disperser runs at high speed, the upper and lower parts of the dispersing disc rotate, and turbulent zone will be formed at the edge of 2.5-5 mm. The upper and lower serrated teeth of the dispersing disc shear, impact, crush and disperse coatings, paints, dry powder, solid liquids and other materials at high speed in order to achieve the state of dissolution, dispersion and refinement. Specification Specifications: 200x3x35mm The Diameter of Dispersing Disc: 200mm The Thickness of Dispersing Disc: 3mm The Diameter of Center Hole: 35mm Product material: 304 stainless steel Weight: 0.2kg Note: 1.The international standard of center holes for 304 stainless steel dispersing discs are 8mm and 35mm respectively. ?30- ?180mm (center hole: 8 mm) diameter specification can be matched with stainless steel dispersing rod. 2.The diameter of ?200mm-?500mm (center hole: 35mm, thickness: 3mm, keyway: 10x4mm) is used for disperser, crusher, grinder and other equipment.
1.Material The dispersion disc is made of 304 stainless steel, with good processability and strong toughness, suitable for use in humid environments, strong corrosion resistance, and not easy to rust.The negative deviation does not exceed 0.05 mm.
2.Application The dispersing disc is widely used in coatings, pigments, dyestuffs, ink, adhesives, medicine, daily chemicals,etc. It is a regular accessory for mechanical equipment such as dispersing machine, grinder, pulverizer,mixer, emulsifier and so on.
3.Note The stainless steel dispersing disc is not recommended for use in strong acid and alkali solutions.If used, when the acid-base concentration of the operating environment exceeds 4%, it is recommended to use dispersing disc.
4.Features The dispersing disc is passivated by sharp edges, hardened on the surface and polished on the surface. It is durable, light and convenient, easy to replace, easy to clean, non-polluting, and easy to operate.
5.Main parameter 20 cm dispersion disc, inner hole diameter 35mm, thickness 3 mm.
