SKU:52128054

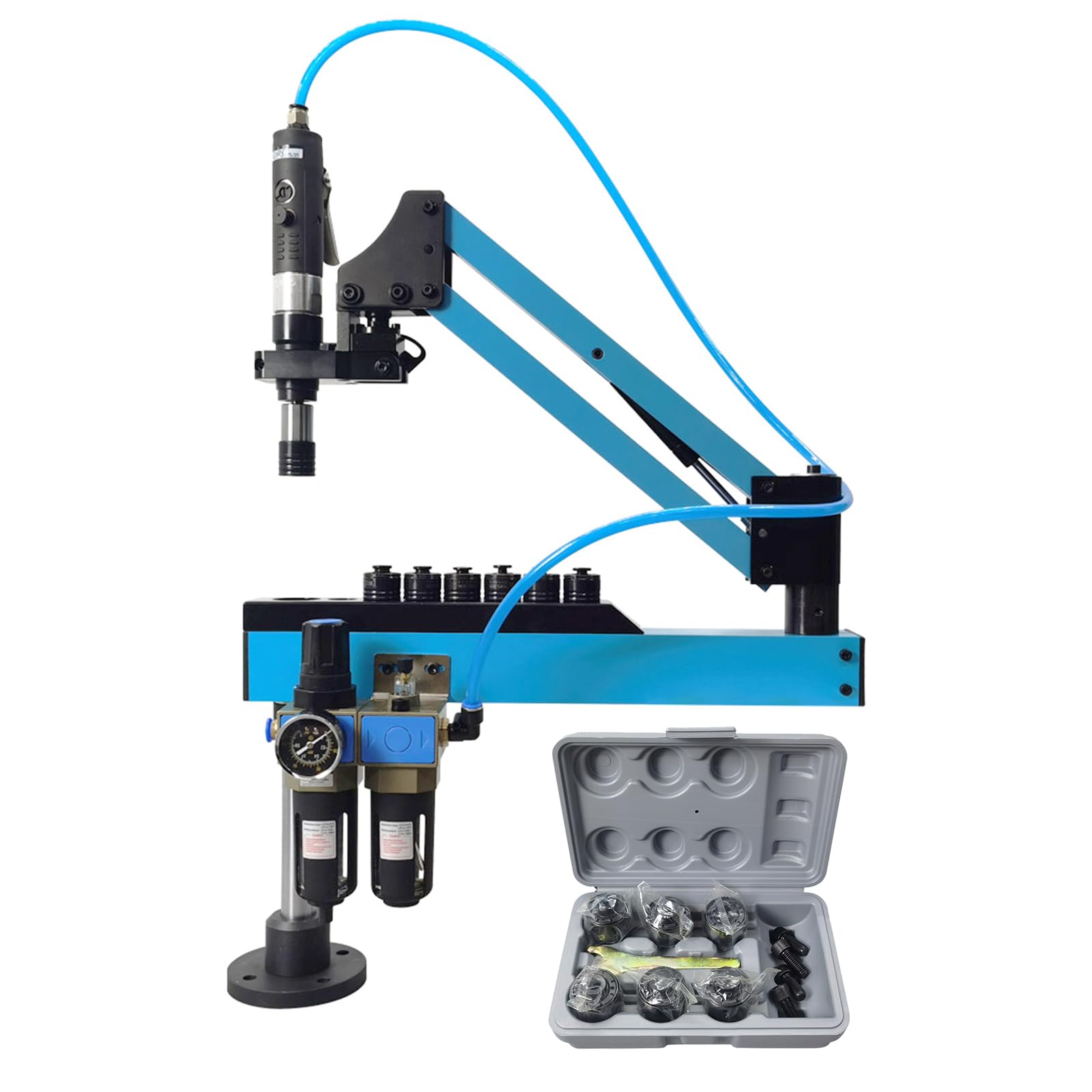

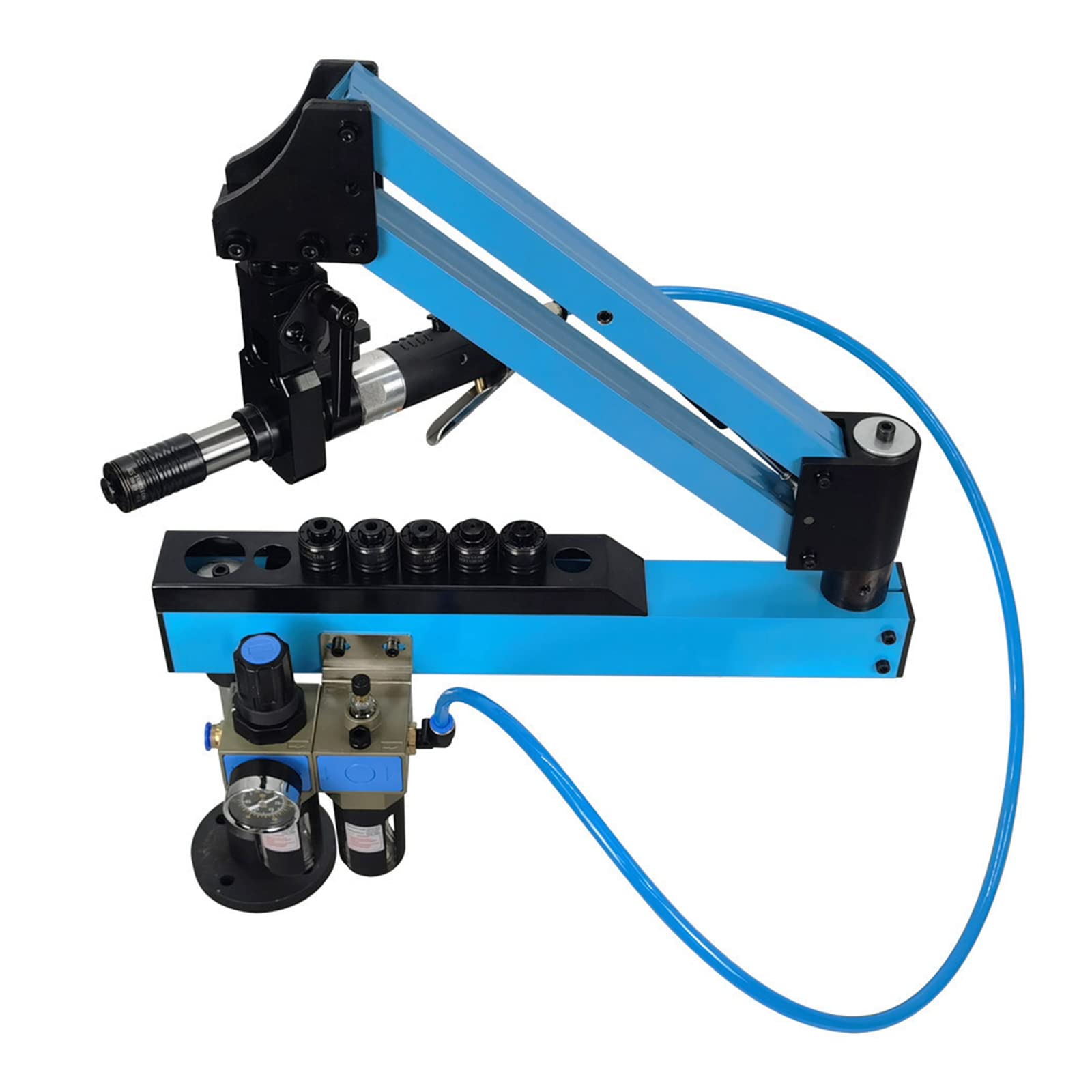

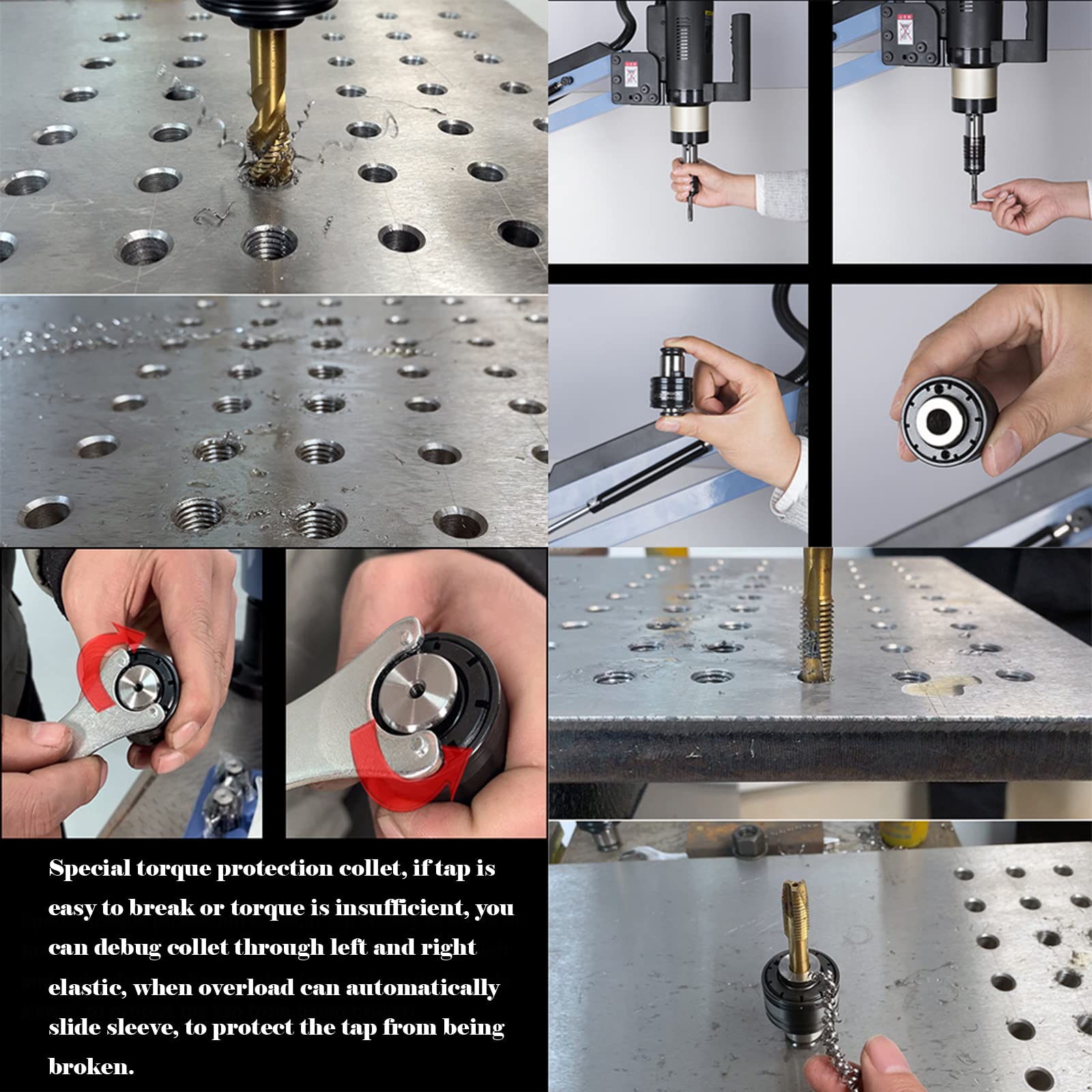

Tapping machine introduction Tapping Head Tapping head is made of wear-resistant plastic material,and is comfortable to hold,with a reverse switch.One hand can control the forward and reverse. Oil-water Separator Oil-water separator can separate oil and water to ensure the normal using of the machine and prolong the service life. Limit Slider A limit slider is designed on the support rod,which can flexibly adjust the vertical height of the tapping machine from the horizontal table,and has strong adaptability. Collet Storage Box The lower rack is equipped with 7 collet storage holes to facilitate the removal and placement of the collet and avoid the loss of the collet. Stable Support The air pressure spring inside the frame can support the head stably,with good resilience,easier operation and labor-saving,and improve work efficiency. Direction Switch The direction switch is designed in the nose position,which can be switched at any time in the horizontal and vertical directions.The horizontal direction supports 360°rotation. M3-M12 Universal 360°Pneumatic Tapping Machine M3-M12 Vertical Pneumatic Tapping Machine M3-M16 Vertical Pneumatic Tapping Machine Add to Cart Add to Cart Add to Cart Price $509.00$509.00 $469.00$469.00 $639.00$639.00 Tapping capacity M3-M12 M3-M12 M3-M16 Working angle 360°universal Vertical Vertical Working area Horizontal:39.37"(1m) ；Vertical:19.68"(0.5m) 39.37"（1.0m） 43.3"（1.1m） Working pressure 0.6-0.8MPa 0.6-0.8Mpa 0.6-0.8Mpa No load rotation speed 400rpm 400rpm 250rpm Gross weight 40.8LB(18.5kg) 38.1LB（17.3kg） 45.8LB（20.8kg） Blue ✓ ✓ ✓

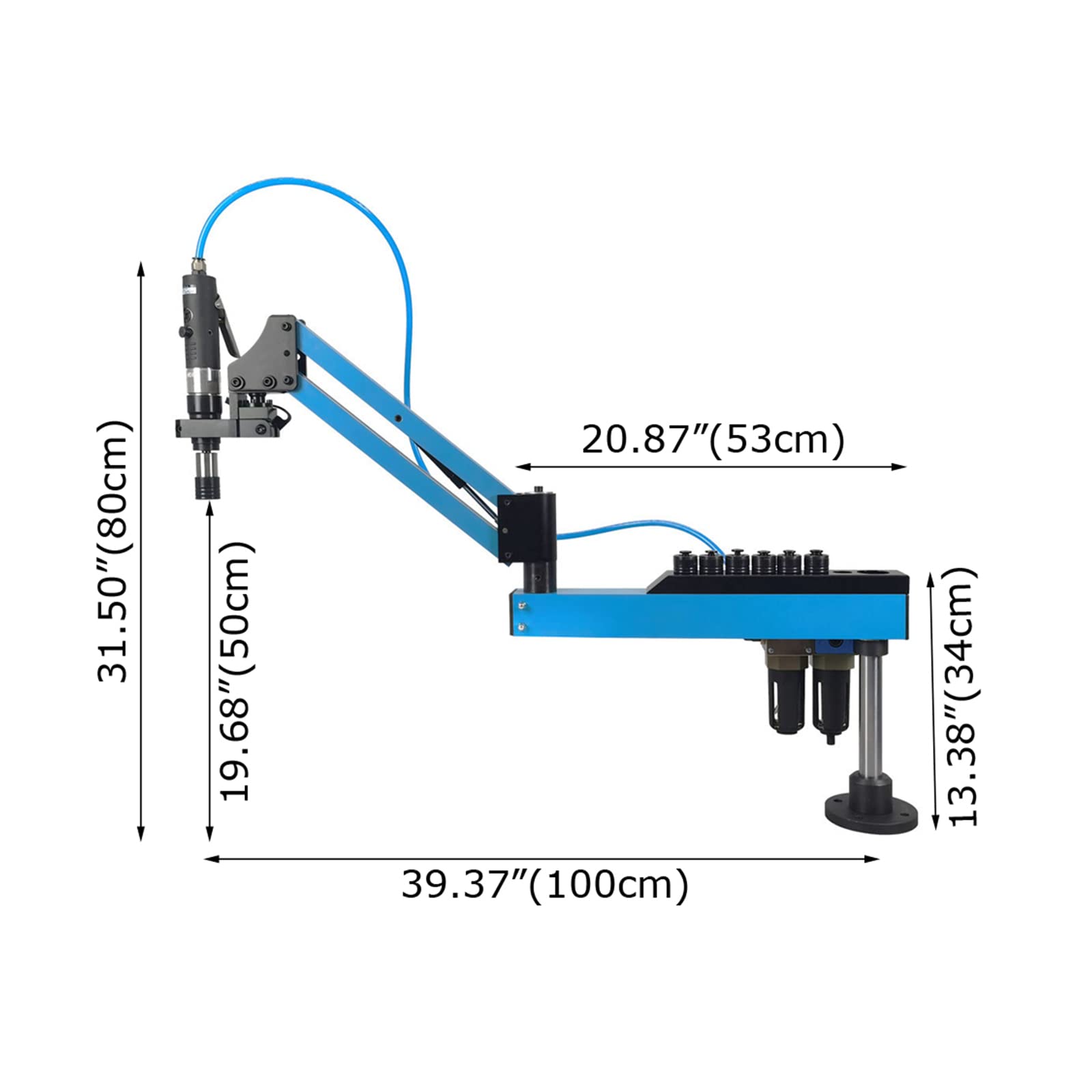

1.Universal pneumatic tapping machine runs smoothly and has low noise.It can achieve 360 degrees tapping and has large working range,heavy work-piece without moving when tapping.Working area horizontal is 39.37"(1m),vertical is 19.68"(0.5m).

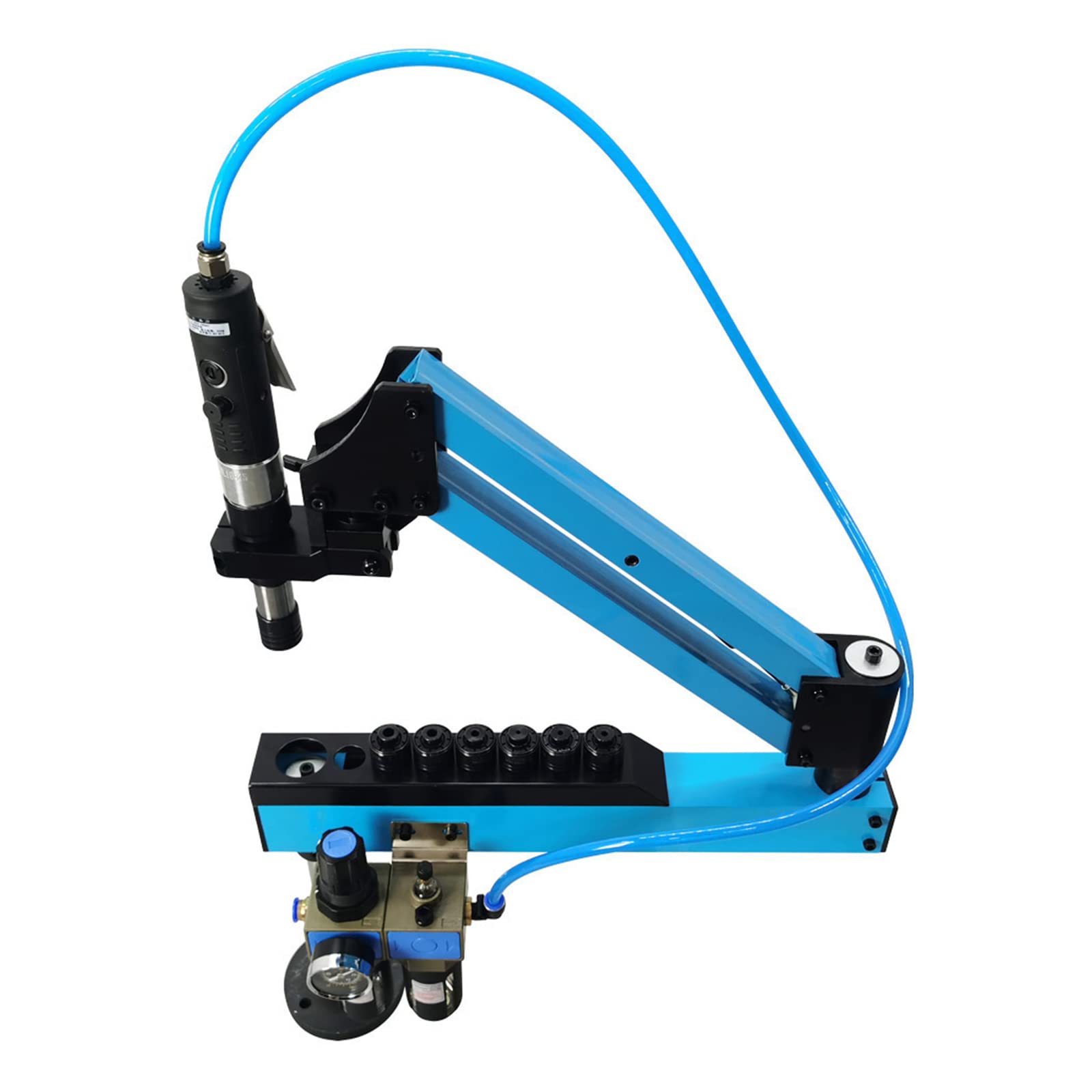

The pressure spring inside the frame can support the machine head stably,with good elasticity and simple operation,and the limited slider on the support rod can adjust the height flexibly and has strong adaptability.
Oil-water separator can separate oil and water to ensure the normal using of the motor and prolong the motor service life.

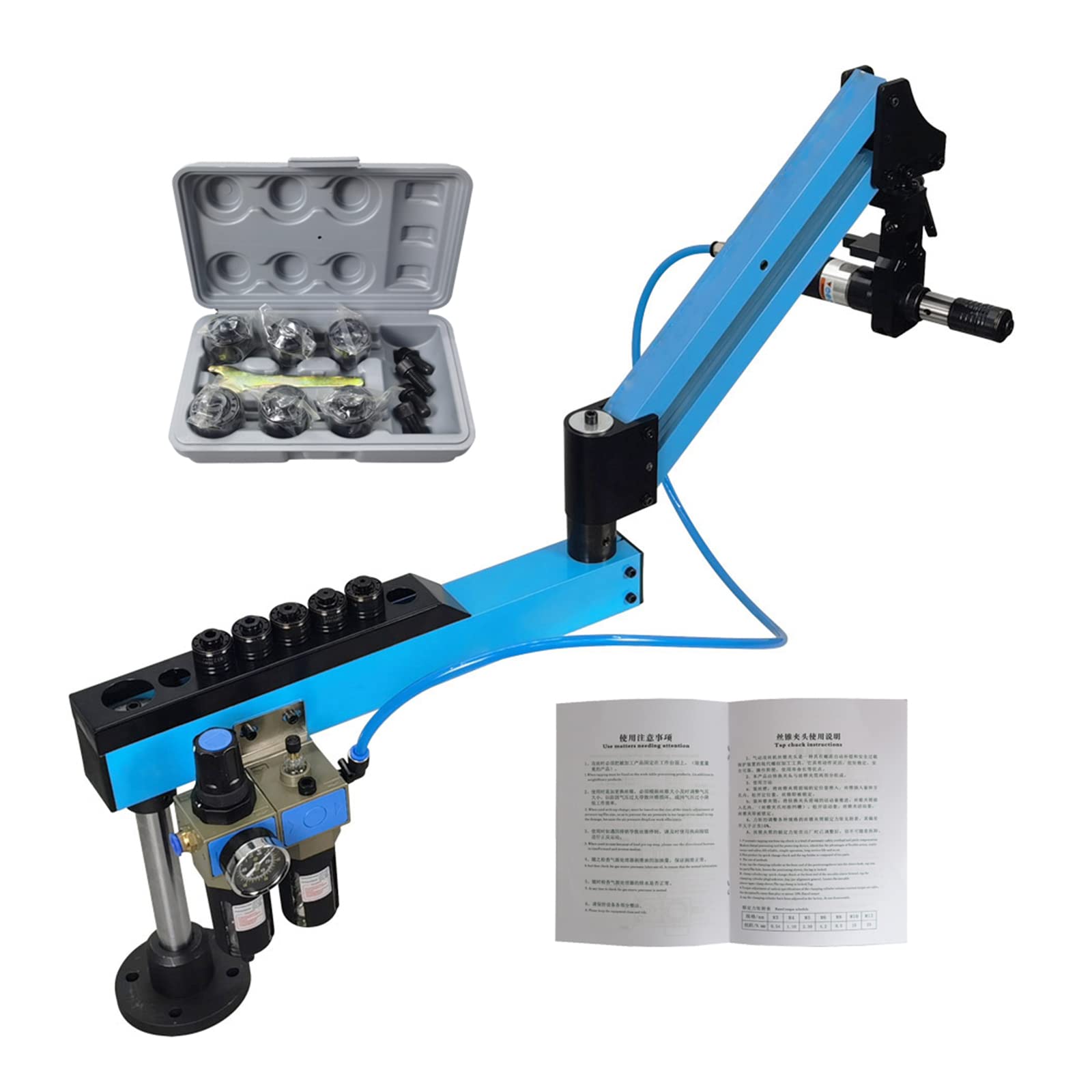

The lower rack is equipped with a collet storage box,which has 7 storage holes,to removal and place the collet and avoid the loss of the collet.At the same time,customers can customize the collet according to the tap size.
Pneumatic tapping machine is suitable for manufacturing industry,and can tap all kinds of steel,iron,copper,aluminum,718H,40Cr, stainless steel and other materials.
